UNISWITCH SWITCHES – SERIES US & LUS
FASTON is a registered trademark of AMP INC .
SWITCHES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

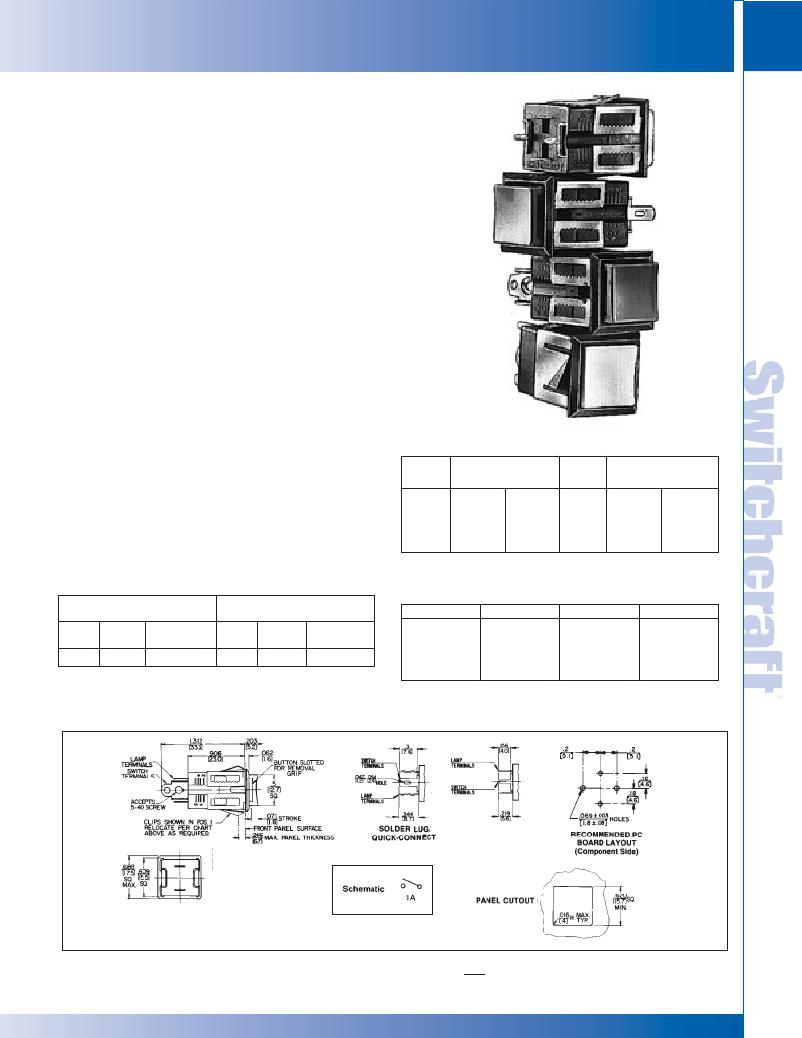

UNISWITCH ? SWITCHES
SERIES US - Non-illuminated,
SERIES LUS - Illuminated
Cost-effective Uniswitch switches are lighted or non-lighted
momentary switches featuring snap-in mounting in a single hole
and a choice of solder/screw (#5-40), solder/quick-connect (AMP
FASTON ? 110) 60967-1, or stand-off PC terminals. Molded housing
protects internal parts, and bezel functions as built-in escutcheon.
Series LUS accepts T 1-3/4 bi-pin lamps. (Lamps not included.)
?
MOUNTING
“Snap-in” mounting is in .617" (15.67 mm) minimum square hole -
for row or matrix mounting. Panel thickness: .047" (1.19 mm) to
.266" (6.76 mm) maximum. To mount, simply press switch into
panel; “Adjusto-Clip” locking tabs engage panel and hold switch
securely. Behind panel distance is 1.312" (33.32 mm) minimum.
SPECIFICATIONS
Switch Housing: Molded plastic, charcoal gray only.
“Adjusto-Clip”: Copper alloy.
Contactor: Copper alloy plated. Form 1-A rated:
250 mA, 30 W maximum, AC, non-inductive load.
Terminals: Copper alloy, silver-plated.
271
Pushbuttons: Molded plastic in 8 colors.
“ADJUSTO-CLIP” MOUNTING
Operating Force: 12 - 16 ounce (340-454 grams).
SPECIAL ORDER FEATURES
Position
Number
Panel Thickness
Inch (mm)
Position
Number
Panel Thickness
Inch (mm)
? Other contactor platings.
Min.
Max.
Min.
Max.
? Engraved legends (See page 270).
? Other pushbutton colors.
1*
2
.047 (1.2)
.094 (2.4)
.078 (2.0)
.125 (3.2)
4
5
.188 (4.8)
.234 (6.0)
.219 (5.6)
.266 (6.8)
? “Adjusto-Clips” set to positions 2, 3, 4, or 5.
3
.141 (3.6)
.172 (4.4)
* “Adjusto-Clips” normally installed in this position unless otherwise specified.
PART NUMBERS (Order switches and pushbuttons separately)
Terminal Type/Part Number; Terminal Type/Part Number;
PUSHBUTTONS*
(Pushbuttons ordered separately from switches.)
Series US
Solder/ Printed Solder/
Screw Circuit Quick-Connect
Series LUS 1
Solder/ Printed Solder/
Screw Circuit Quick-Connect
Part Number
P23491
P23492
Color
Red
Black
Part Number
? P23495
? P23497
Color
White
Orange
US001
US001PC
US001ST
LUS001 LUS001PC
LUS001ST
P23493
Green
? P23498
Yellow
1. Lamp not included.
P23494
Blue
? P234913
Amber
? Special order only; contact Switchcraft for price and delivery.
* Extra replacement pushbuttons can be ordered separately.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
